545rfe transmission wiring diagram. 545-RFE Automatic Transmission - 2003-09 Dodge 1500 2500 HEMI 2-Wheel Drive Transmission Only. The 68RFE as well as the entire RFE line of transmission have the ability to Fine. AUTOMATIC TRANSMISSION - 45RFE545RFE DESCRIPTION The 45RFE545RFE automatic transmissions is a sophisticated multi-range electronically controlled transmission which combines optimized gear ratios for responsive performance state of the art efficiency features and low NVH.

Part Part 301002 25 Electronic Transmission Controller Wiring Harnesses Transmission Controller 301002 GMChevrolet 4L60E 4L65E 4L70E 4L80E 4L85E Harness 301427 GM 4T6580E Harness 301428 Chrysler 45RFE545RFE Harness 301429 Ford 92-97 AODE4R70W Harness 301430 ORD 5P 2 7ARNESS. When a transmission is repaired and a Quick Learn procedure has been performed on the Transmission Control Module TCM the following Drive Learn procedure can be performed to fine tune any shifts which are particularly objectionable. Had a code P0750 throw my check engine light for me so since I needed to replace a solenoid and this is a pretty common dodge transmission I thought I might put this up here so maybe someone else can benefit from my experience.

Four and five-speed transmissions have more than 90 of interchangeable parts. WIRING DIAGRAM COMPONENT LOCATIONS. The electronic components of the 45545RFE transmission consist of various sensors and switches as input information to the TCM that the TCM uses to determine the appropriate gear ratio and shift schedule points.

Steel adapter vented filter farpack pan gasket - see more info. AUTOMATIC TRANSMISSION - 545RFE - ELECTRICAL DIAGNOSTICS. The RFE is an automatic transmission family from Chrysler.

45RFE 545RFE Remanufactured Valve Body CHR140 08-Earlier. The 45RFE transmission was eventually replaced by a 5 speed transmission the RFE. It allows carrying out repairs easily.

Automatic transmission 45RFE545rfe proved itself as a durable and reliable transmission. There is also the associated wiring fuses relays connectors splices and grounds for the transmission to function as designed. Job was pretty simp.

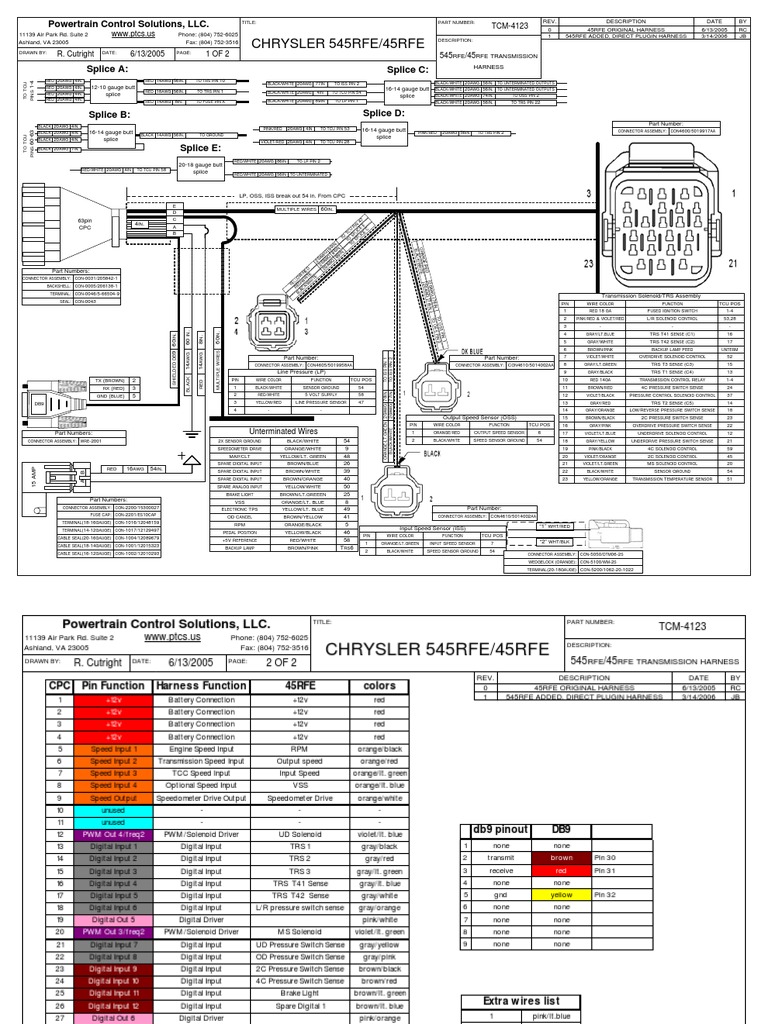

We FIX the valve body the correct way only with over 25 years building transmission experience and tech support. Transmission wiring schematic has been provided for you in Figure 10. 545RFE Transmission 45RFE information about rebuild.

ATS 545RFE Performance Transmission Assembly 2WD 2003-2009 Dodge RAM 57L Hemi. The 45RFE was introduced in the Jeep Grand Cherokee in 1999 it is notable for including three. 13 Ohms Normally Venting.

Dodge 545RFE Solenoid Pack Replacement. Torque Converter Billet Single Disc or patented Triplelok Torque Converter. The Transmission Rebuilders Network is the place where the industries best transmission rebuilders work together to help solve the most complex automatic transmission problems.

The final output from the TCM is to the six shift solenoids and the line pressure control solenoid located in the Solenoid BodyTransmission Range Sensor assembly and bolted on the valve body as shown in Figure 9. These 545RFE valve bodies cause Overdrive clutch burn up transmission pressure switch codes and many more issues. Other features include driver.

The final output from the TCM is to the six shift solenoids and the line pressure control solenoid located in the Solenoid BodyTransmission Range Sensor assembly and bolted on the valve body as shown in Figure 9. When trying to locate a component in a wiring diagram and you dont know the specific system where it is located use this handy component locator to find the system wiring diagram in which the component is. Warranty - 5 Year 500000 miles.

ATSG Chrysler 45RFE Transmission Repair Manual - Beginning at the start of production for the 1999 model year Chrysler Corporation has introduced a brand new rear wheel drive transmission for the 99 Jeep Grand Cherokee with the 47L engine and scheduled for the Ram Pick-up for the 2000 model year. Serious damage is a very rare thing. 45RFE 545RFE 68RFE Solenoid Identification Connector Pin Out Valve Body Xpress.

We FIX the warped the valve body hafts by flat sanding the valve body and checking for warpage. This is the first completely new rear wheel drive automatic transmission from Chrysler in more. Transmission wiring schematic has been provided for you in Figure 10.

Whether you need 65RFE wiring diagram information 65RFE transmission rebuilders tips 65RFE technical information 65RFE diagnostics 65RFE troubleshooting help or just answers to your 65RFE transmission rebuilders question the Transmission Rebuilders Network is the place to goChrysler RFE transmission - WikipediaThree Problems With The. 45RFE Transmission 545RFE Transmission 68RFE Transmission. P0124-TPSAPP INTERMITTENT For a complete Transmission wiring diagram Refer to Section 8W.

Theory of Operation Due to the integration of the Powertrain and Transmission Control Modules the New Generation Control Module III will be referred as the Powertrain Control Module.
